基本信息/Basic information
|
產品型號 Product ID |

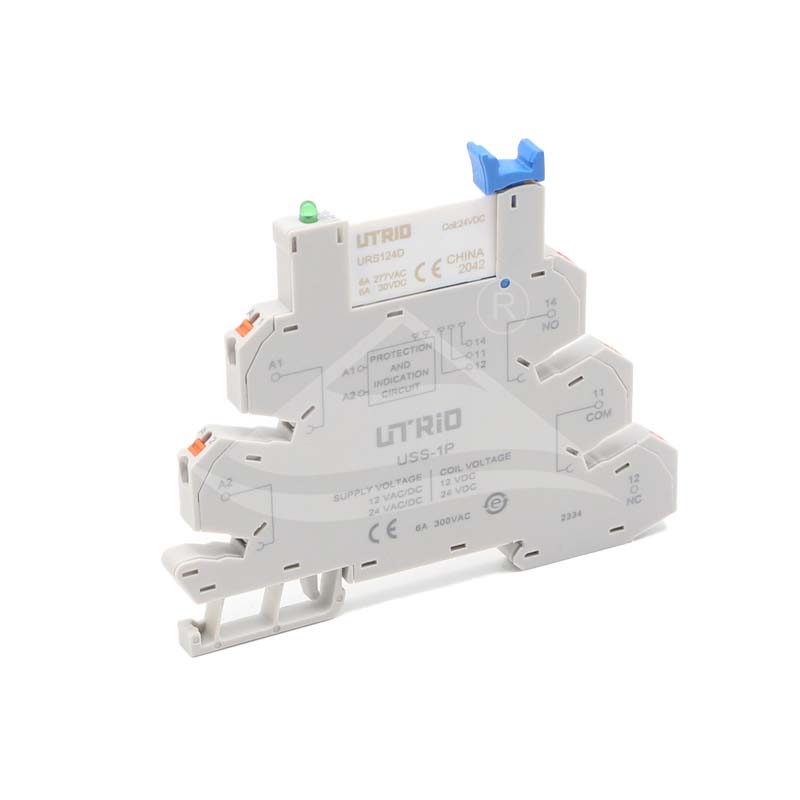

URTPS105D |
|
連接方式 Connection type |
彈片連接 |
|
尺寸 Dimension |
76.6mm / 6.2mm / 88.2mm (高x長x寬) |
|
接線范圍(額定/最小/最大)(mm2) Wiring range(rated/min/Max)/(mm2) |
1.0 / 0.5 / 1.5 |
|
狀態指示 Status indication |
LED |
|
工作溫度 Operating temperature |
-40 °C...+60 °C |
|
存儲溫度 Storage temperature |
-40 °C...+85 °C |
|
環境濕度 Ambient humidity |
35%~80%RH |
IEC數據/IEC Data
輸出參數 |
|
|
觸點類型 Contact type |
1 CO |
|
最大切換電壓 Maximum switching voltage |
277VAC / 30VDC |
|
最大切換電流 Maximum switching current |
10A |
|
最大切換功率 Maximum switching power |
2770VA / 240W |
|
最小切換負載 Minimum switching load |
24V / 10mA |
|
阻性負載 Resistive load |
6A@277VAC/30VDC |
|
馬達負載 Motor load |
1/3HP@277VAC |
|
接觸電阻 Contact resistance |
100mΩ以下(在 6VDC1A 條件下) |
|
電氣壽命(1s通/1s斷) Electrical life (1s on /1s off) |
>3x10?(1800 Ops/h) |
|
機械壽命(300次/分鐘) Mechanical life (300 cycles/min) |
>1x10?(18000 Ops/h) |
|
動作時間 Action time |
<15 ms |
|
動作/釋放電流(DC線圈) Action/release current(DC coil) |
<8 ms |
輸入?yún)?shù) |
|
|
額定電壓 Rated voltage |
5V DC +20 % / -5 % |
|
額定電流(DC線圈) Rated current (DC coil) |
34.5 mA |
|
額定功率 Rated power |
180 mW |
|
動作/釋放電壓(DC線圈) Action/release voltage (DC coil) |
4V / 1V |
|
動作/釋放電流(DC線圈) Action/release current (DC coil) |
27.6 mA / 7 mA |
絕緣等級(EN 50 178) |
|
|
額定電壓 Rated voltage |
300V |
|
接點間爬電距離 Creepage distance between contacts |
≥ 5.5 mm |
|
過壓等級 Overpressure grade |
III |
|
污染等級 Pollution level |
2 |
UL數據 /UL Data
|
使用組別 Use group |
B | C | D |
|
額定電流 Rated Current |
- | - | - |
|
額定電壓 Rated Voltage |
- | - | - |
|
額定接線容量 Rated cross section |
- |
|
|
材料信息 /Material Data
|
觸點材料 Contact material |
銀氧化錫合金 |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|
訂購方式/Order method
|
訂購方式 Order method |
|
