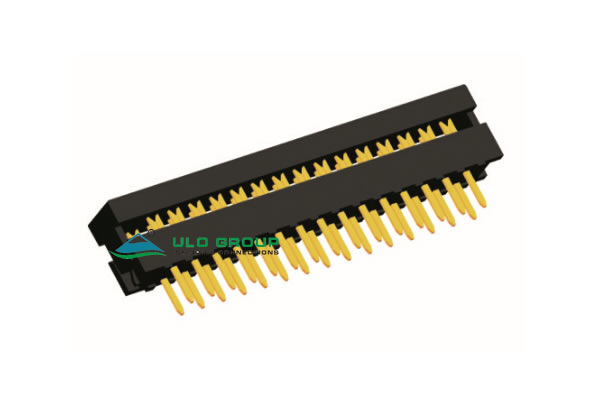

FD - Dip Plug
ULO-DP406B
間距: 2.0MM, 操作溫度: -45°C~+110°C, 額定電壓: AC 500V Per Minute, 塑件材質: Thermoplastic (UL 94V-0)
基本信息/Basic information
|
產品型號 Product ID |
ULO-DP406B |
|
接觸阻抗 Contact impedance |
20mΩ Max |
|
絕緣阻抗 Insulation impedance |
1000MΩ |
|
耐電壓 Withstand voltage |
500V AC 1 Minute |
|
存儲溫度 Storage temperature |
-20°C~+70°C |
|
操作溫度 Operation temperature |
0°C~+85°C |
IEC數據/IEC Data
|
額定電流 Rated Current |
- |
|
額定電壓 Rated Voltage |
- |
|
過壓類別 Overvoltage category |
- |
|
額定沖擊電壓 Rated impulse voltage |
- |
|
額定電壓 Rated Voltage |
- |
|
硬導線截面積 Conductor cross section solid |
- |
|
柔性導線截面積 Conductor cross section flexible |
- |
|
柔性導線截面積，帶絕緣管套 Conductor cross section flexible,with furrule |
- |
|
鎖線螺釘規格 Locking screw Specification |
- |
|
額定扭矩 Rated Torque |
- |
|
固定螺釘規格 Fixed Screw Specification |
- |
|
額定扭矩 Rated Torque |
- |
|
剝線長度 Stripping length |
- |
UL數據 /UL Data
|
使用組別 Use group |
- |
|
額定電流 Rated Current |
- |
|
額定電壓 Rated Voltage |
- |
|
額定接線容量 Rated cross section |
- |
材料信息 /Material Data
|
絕緣材料 Insulation material |
熱塑料 |
|
絕緣材料組別 Insulation material group |
Ⅰ |
|
阻燃等級，符合UL94 Flame retardant grade, UL94 compliance |
UL94V-0 |
|
導電體材料 Contact material |
銅合金 |
|
導電體表面鍍層 Surface characteristics |
- |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|

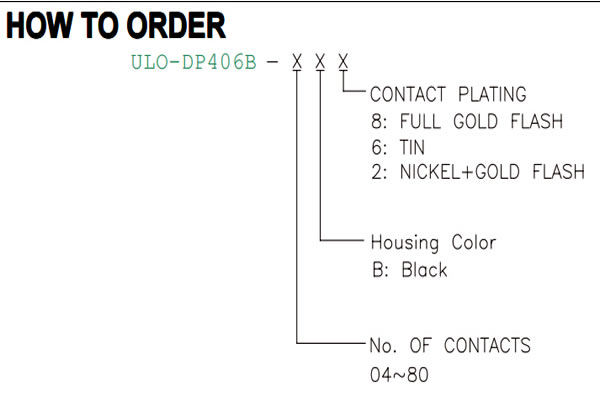

訂購方式/Order method
|
訂購方式 Order method |
|
