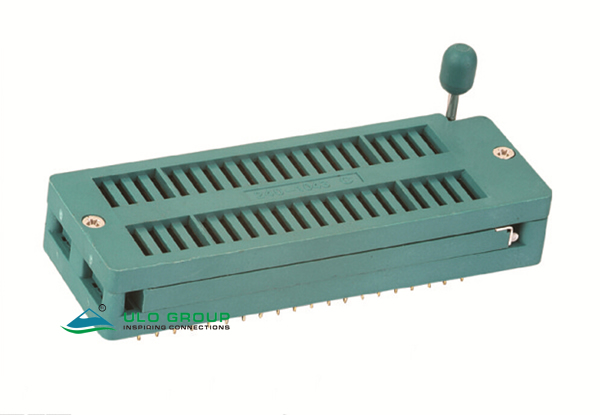

ULO-ZS431
類型:2.54MM Zif Socket, 間距:2.54MM, 操作溫度:-25°C~+70°C, 儲藏溫度:-40°C~+85°C, 塑件材質:Thermoplastic
基本信息/Basic information
|
產品型號 Product ID |
ULO-ZS431 |
|
絕緣電阻 Insulation resistance |
1000MΩ Min |
|
耐電壓 Withstand voltage |
500V AC / Minute |
|
壽命 Life |
5,000 Cycles(With Lood) |
|
額定功率 Rated power |
50VDC,100mA |
|
操作溫度 Operating temperature |
-25°C~+70°C |
|
儲藏溫度 Storage temperature |
-40°C~+85°C |
|
濕度 Humidity |
95%RH,40°C For 48Hrs |
|
可焊性 Weldability |
After Flux 230°C For 5±0.5 Seconds,95% Coverage |
|
焊接熱 Welding heat |
260±5°C For 5±1 Seconds |
IEC數據/IEC Data
|
額定電流 Rated Current |
- |
|
額定電壓 Rated Voltage |
- |
|
過壓類別 Overvoltage category |
- |
|
額定沖擊電壓 Rated impulse voltage |
- |
|
額定電壓 Rated Voltage |
- |
|
硬導線截面積 Conductor cross section solid |
- |
|
柔性導線截面積 Conductor cross section flexible |
- |
|
柔性導線截面積，帶絕緣管套 Conductor cross section flexible,with furrule |
- |
|
鎖線螺釘規格 Locking screw Specification |
- |
|
額定扭矩 Rated Torque |
- |
|
固定螺釘規格 Fixed Screw Specification |
- |
|
額定扭矩 Rated Torque |
- |
|
剝線長度 Stripping length |
- |
UL數據 /UL Data
|
使用組別 Use group |
- |
|
額定電流 Rated Current |
- |
|
額定電壓 Rated Voltage |
- |
|
額定接線容量 Rated cross section |
- |
材料信息 /Material Data
|
絕緣材料 Insulation material |
熱塑料 |
|
絕緣材料組別 Insulation material group |
Ⅰ |
|
阻燃等級，符合UL94 Flame retardant grade, UL94 compliance |
UL94V-0 |
|
導電體材料 Contact material |
銅合金 |
|
導電體表面鍍層 Surface characteristics |
- |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|

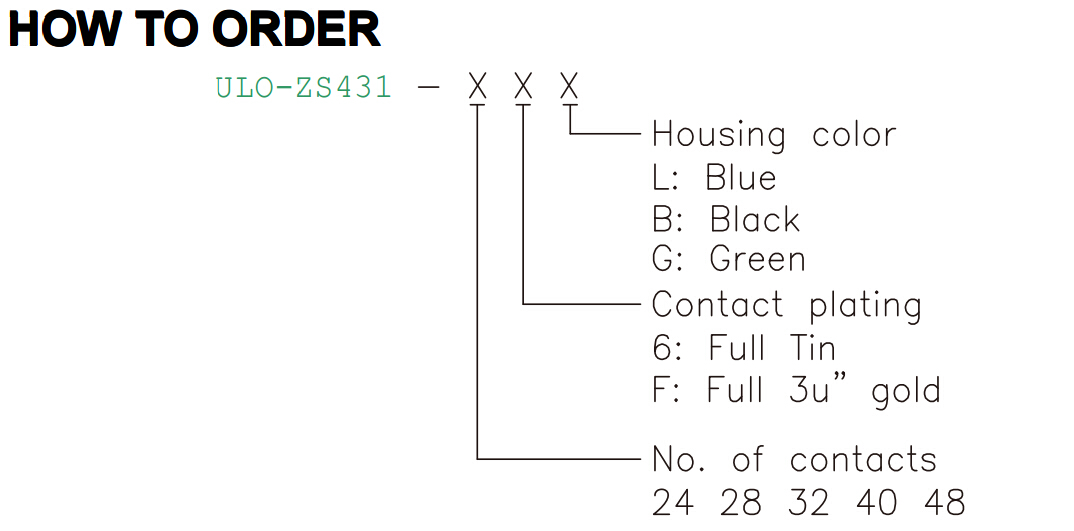

訂購方式/Order method
|
訂購方式 Order method |
|
