基本信息/Basic information
|
產品型號 Product ID |

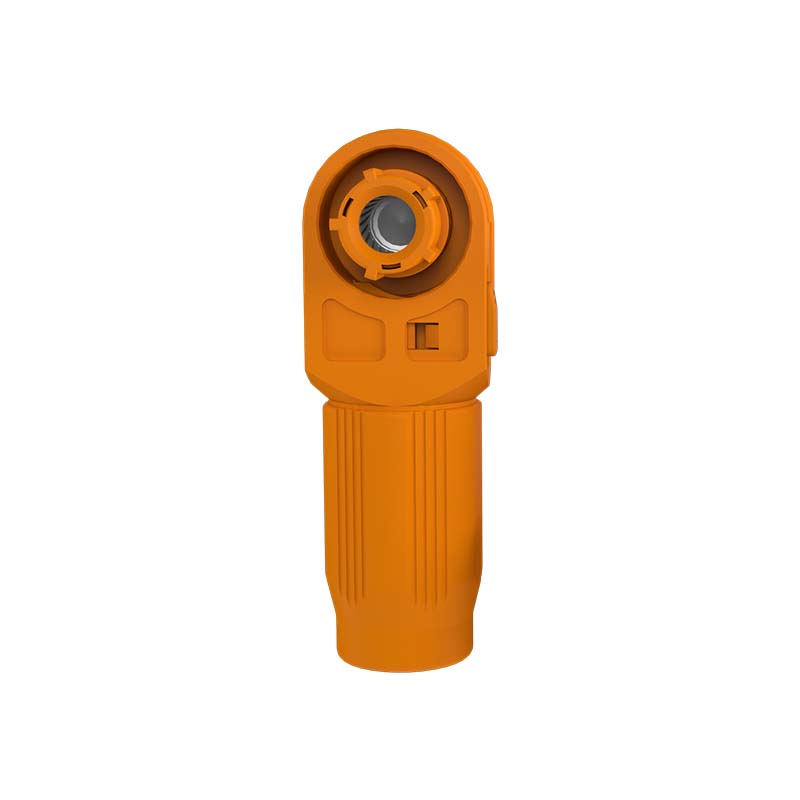

ULO-CN06-S01-T50-200 |
|
接線數量 Number of connections |
1 |
|
適配線徑 Cable sectional area |
35mm2 50mm2 |
|
接線方式 Connection method |
壓接 |
|
防護等級 Protection Level |
IP67 |
|
工作溫度 Work temperature |
-40~125℃ |
IEC數據/IEC Data
|
額定電流 Rated current |
200A |
|
額定電壓 Rated voltage |
1500V DC |
|
接觸電阻 Contact resistance |
≤0.2mΩ(100mA) |
|
絕緣電阻 Insulation resistance |
＞500MΩ |
|
介電強度 Dielectric strength |
3500V DC |
|
插拔力 Pull-out force |
≤75N |
|
插拔次數 Plugging times |
≥500次 |
UL數據 /UL Data
|
使用組別 Use group |
B | C | D |
|
額定電流 Rated Current |
- | - | - |
|
額定電壓 Rated Voltage |
- | - | - |
|
額定接線容量 Rated cross section |
- |
|
|
材料信息 /Material Data
|
絕緣材料 Insulation material |
PA66 |
|
絕緣材料組別 Insulation material group |
Ⅰ |
|
阻燃等級，符合UL94 Flame retardant grade, UL94 compliance |
UL94V-0 |
|
導電體材料 Contact material |
T2Y純銅 |
|
導電體表面鍍層 Surface characteristics |
鍍銀 |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|
訂購方式/Order method
|
訂購方式 Order method |
|
