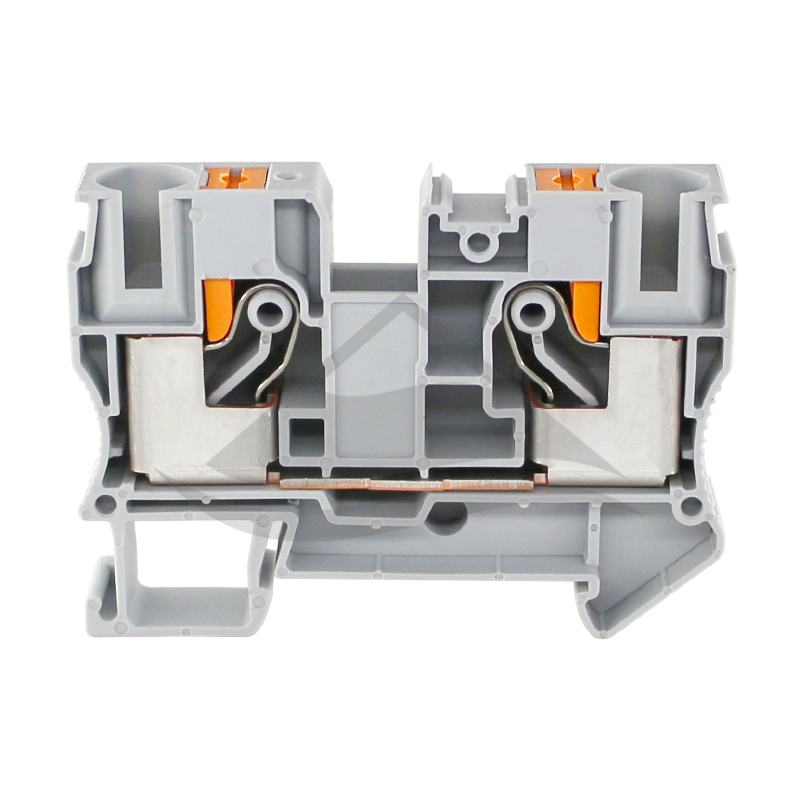

直插式導軌端子
ULO-TB186-PT10
直插式導軌接線端子，寬度\長度\高度:10.2mm\67.7mm\50mm, 額定電壓:600V(cULus),1000V(TUV), 額定電流:60A(cULus),57A(TUV), 適用線經:20-6AWG,0.5-16mm2
基本信息/Basic information
|
產品型號 Product ID |
ULO-TB186-PT10 |
|
產品層次 Number of rows |
1 |
|
連接量 Number of connections |
2 |
|

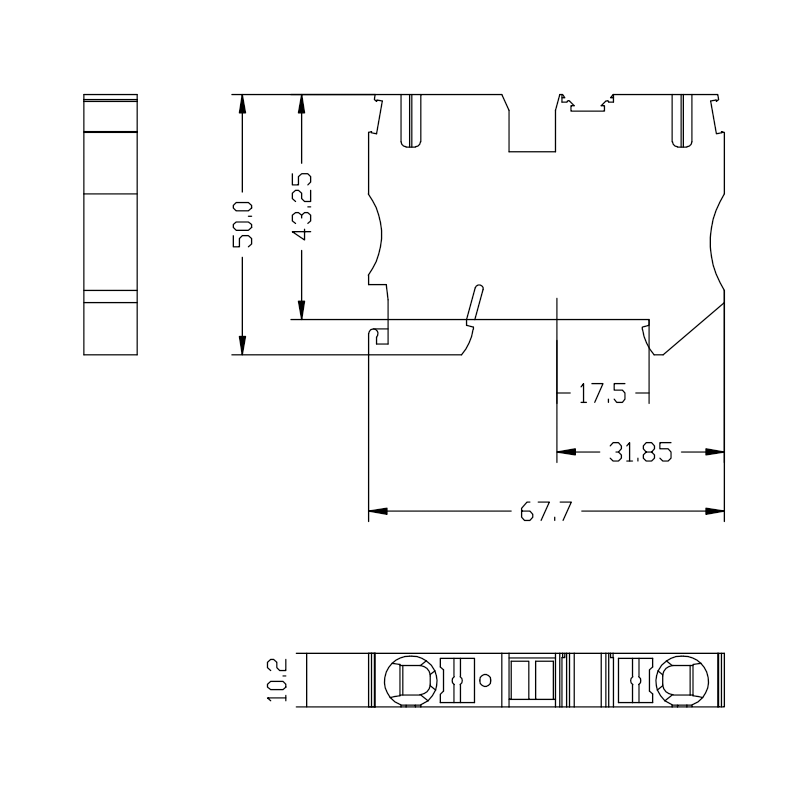

寬度\長度\高度 Width\Length\Height |
10.2mm\67.7mm\50mm |
|
接線方式 Connection method |
直插式連接 |
|
防護等級 Protection Level |
IP20 |
|
工作溫度 Work temperature |
-40~+105℃ |
IEC數據/IEC Data
|
額定電流 Rated Current |
57A |
|
|
|
額定電壓 Rated Voltage |
1000V |
|
|
|
過壓類別 Overvoltage category |
Ⅲ |
Ⅲ |
Ⅱ |
|
污染等級 Pollution degree |
3 |
2 |
2 |
|
額定沖擊電壓 Rated impulse voltage |
8KV | - | - |
|
額定電壓 Rated Voltage |
1000V | - | - |
|
硬導線截面積 Conductor cross section solid |
0.5-16mm2 |
|
|
|
柔性導線截面積 Conductor cross section flexible |
0.5-16mm2 |
|
|
|
柔性導線截面積，帶絕緣管套 Conductor cross section flexible,with furrule |
0.5-10mm2 |
|
|
|
鎖線螺釘規格 Locking screw Specification |
- |
|
|
|
額定扭矩 Rated Torque |
- |
|
|
|
剝線長度 Stripping length |
18mm |
|
|
UL數據 /UL Data
|
使用組別 Use group |
B | C | D |
|
額定電流 Rated Current |
60A | - | - |
|
額定電壓 Rated Voltage |
600V | - | - |
|
額定接線容量 Rated cross section |
20-6AWG |
|
|
材料信息 /Material Data
|
絕緣材料 Insulation material |
PA66 |
|
絕緣材料組別 Insulation material group |
Ⅰ |
|
阻燃等級，符合UL94 Flame retardant grade, UL94 compliance |
UL94V-0 |
|
導電體材料 Contact material |
銅合金 |
|
導電體表面鍍層 Surface characteristics |
鍍錫 |
產品認證 /Product Certification
|
認證圖標 Certificate |
|
|
UL證書號 UL file No. |
|
|
VDE證書號 VDE No. |
|
|
TUV證書號 TUV No. |
|
包裝信息 /Package Data
|
包裝信息 Package Data |
|
訂購方式/Order method
|
訂購方式 Order method |
|
|
端板 End cover |
D-PT10 |
|
隔板 Partition plate |
- |
|
插拔式橋接件 Pluggable bridge |
FBSXX-10 |
|
標記條 Marker strip |
ZB10 / ZBF10 |
|
終端固定件 End Clamp |
E/UK |
|
DIN導軌 DIN rail |
U35/7.5 |
